PULSER 220 SPEEDOMETER

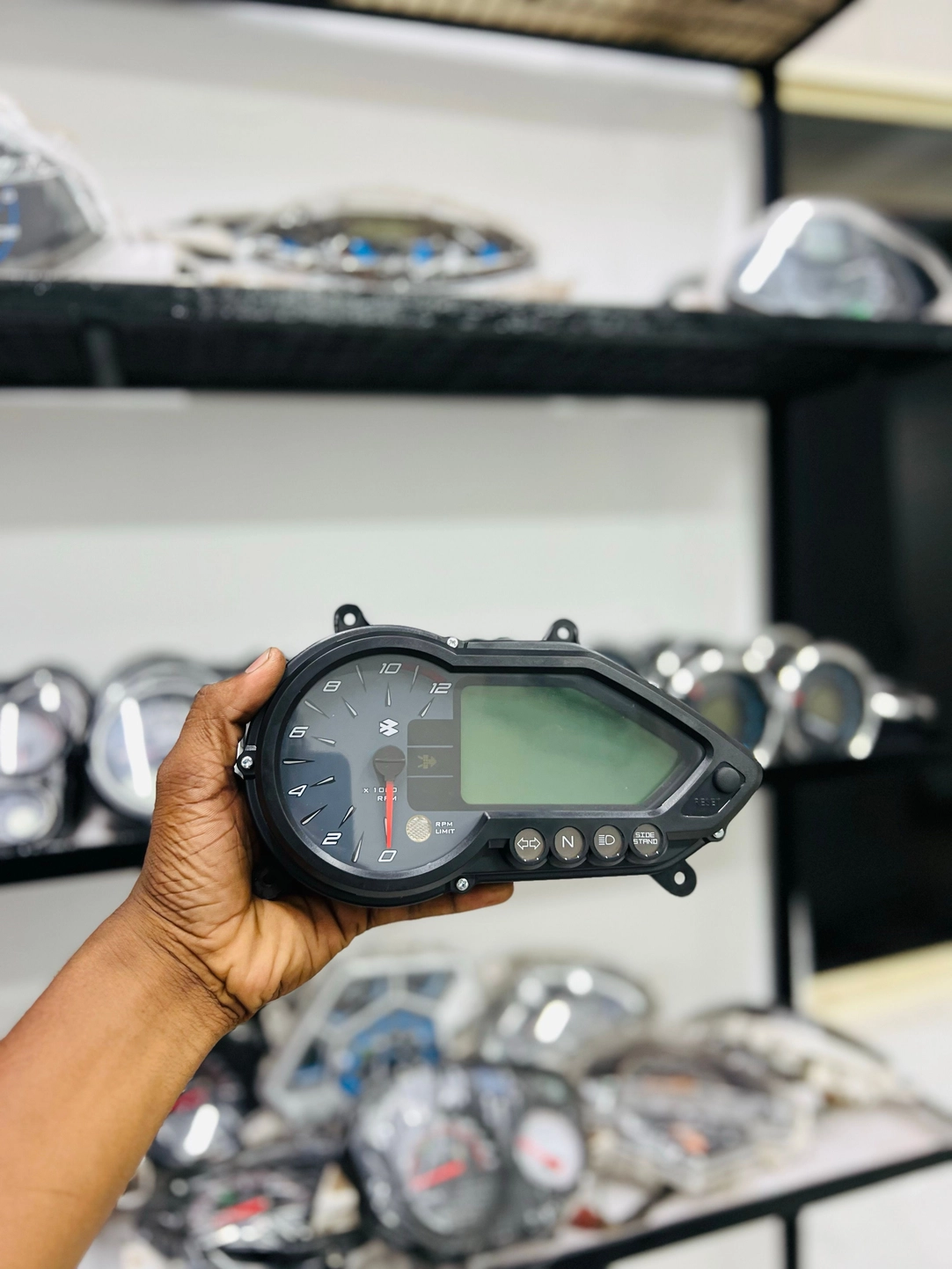

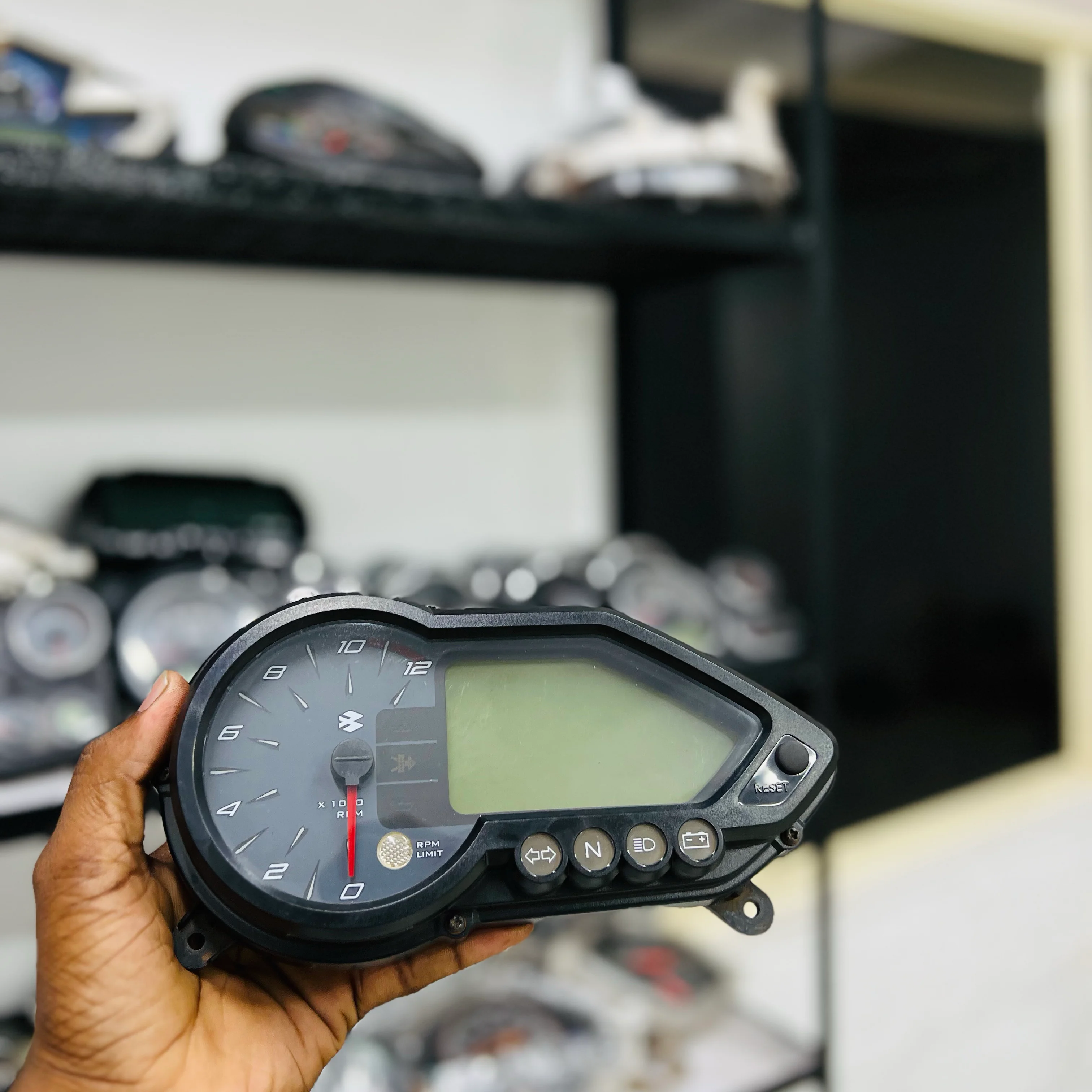

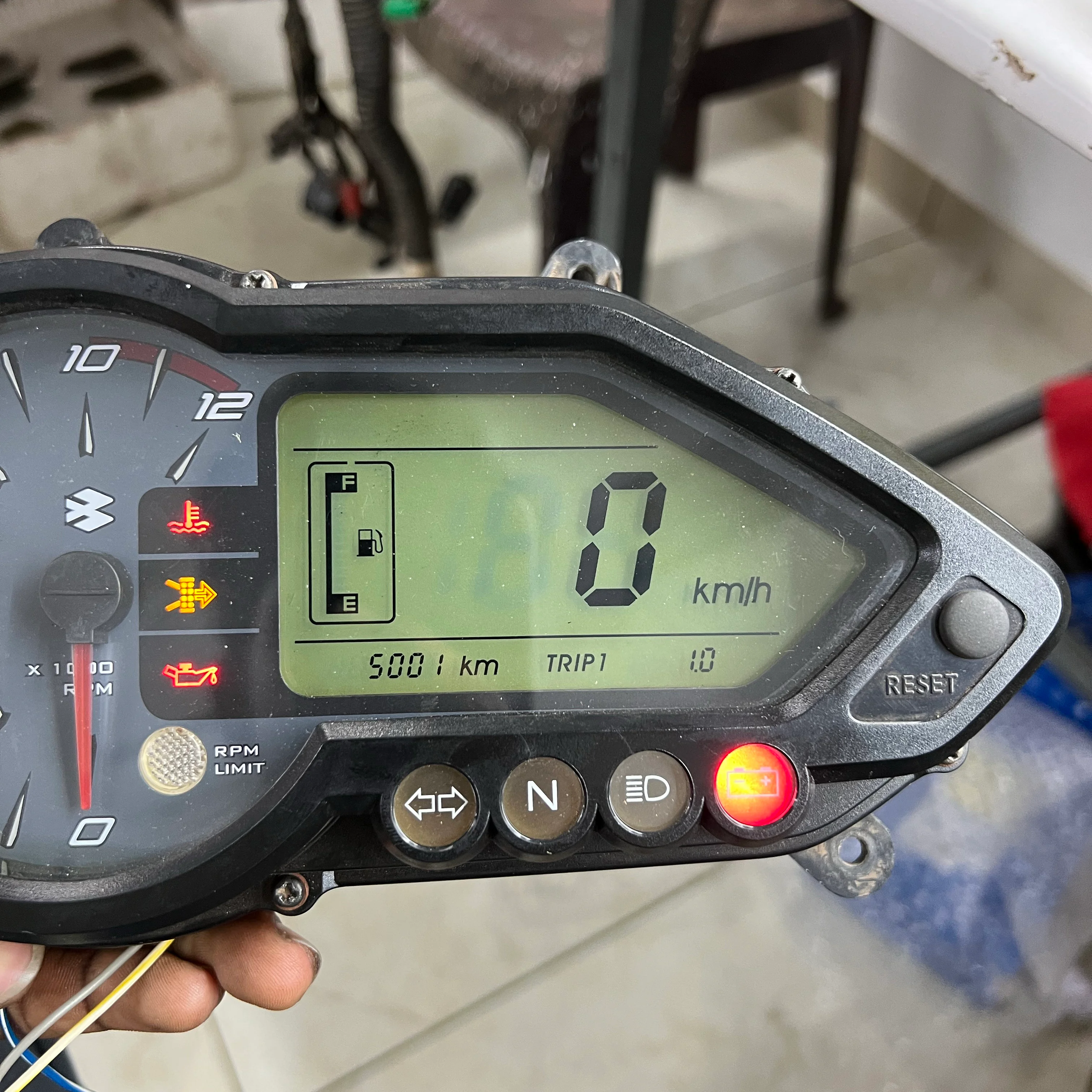

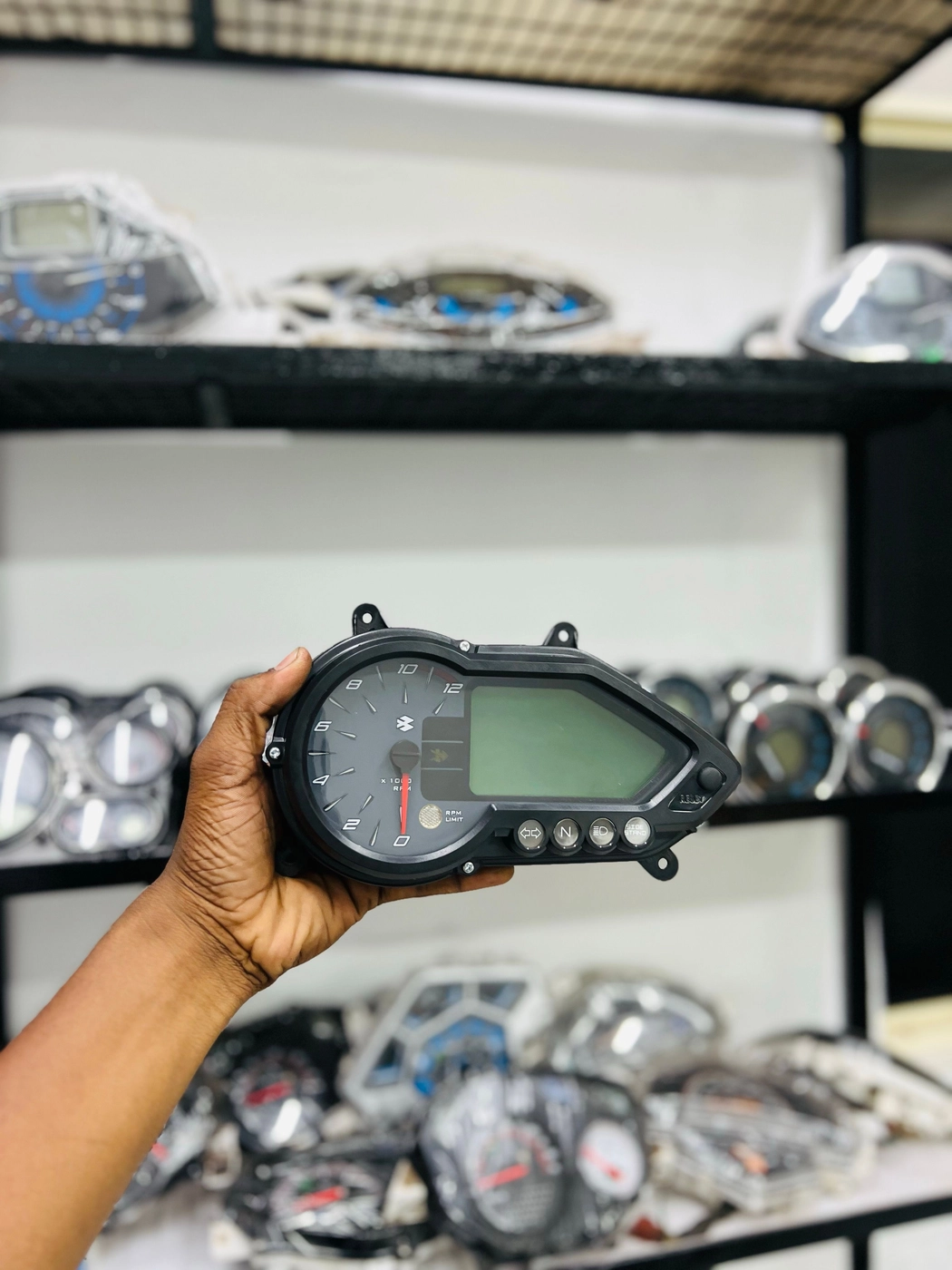

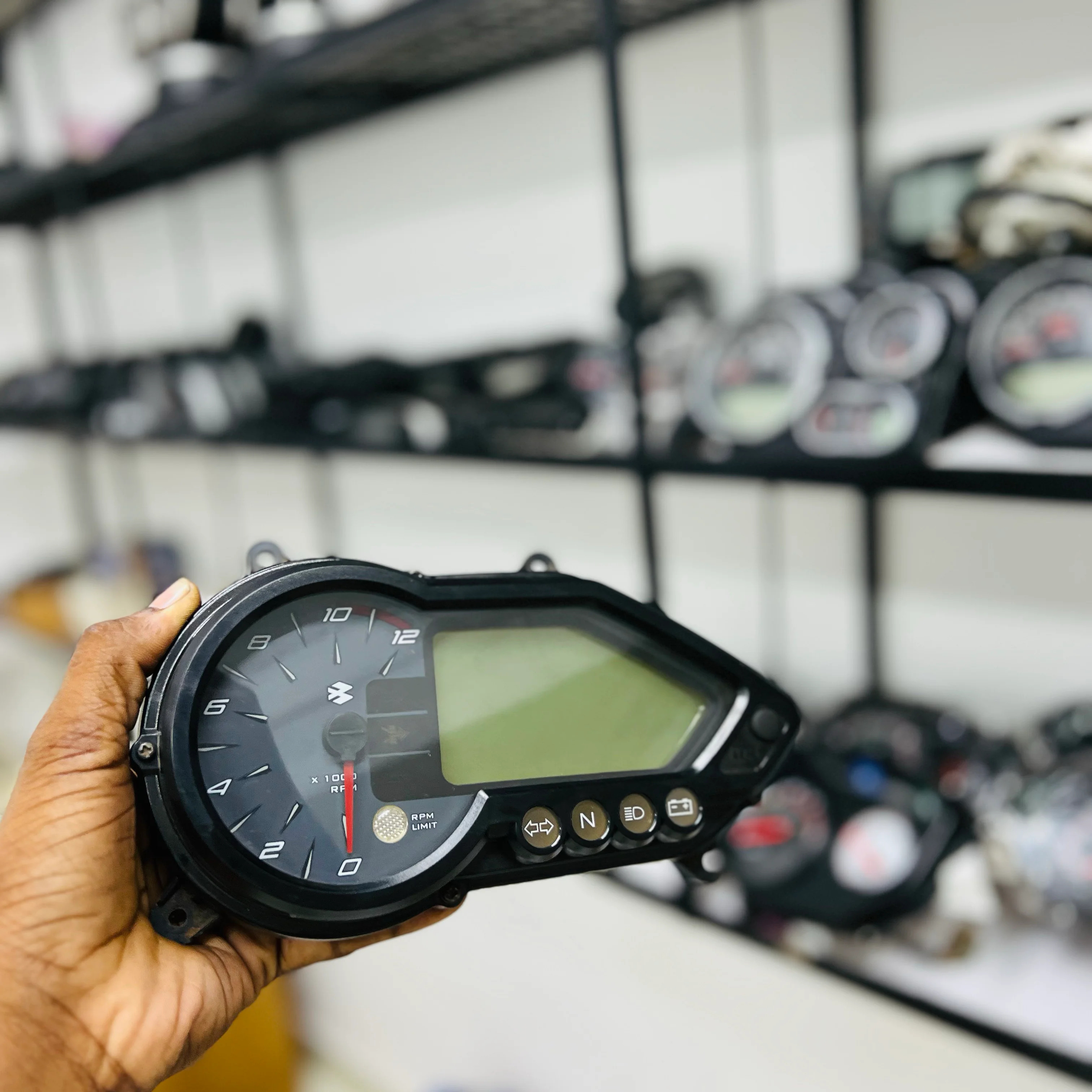

The image shows a classic Bajaj Pulsar 220F semi-digital instrument cluster. This specific design is iconic for Pulsar enthusiasts, blending an old-school analog tachometer with a digital display for modern functionality. 1. Analog Tachometer (Left) • Function: Displays engine revolutions per minute (RPM). • Range: Calibrated from 0 to 12 (representing \times 1000 RPM). • Redline: Usually starts around 9,000–9,500 RPM to warn against over-revving. • RPM Limit Indicator: A small circular light at the bottom of the dial that flashes when you hit the engine's power ceiling. 2. Digital LCD Panel (Right) When powered on, this "Orange/Amber Backlit" screen displays: • Speedometer: Large digital readout in km/h. • Odometer: Total distance traveled by the vehicle. • Trip Meters: Dual trip meters (Trip A/Trip B) for tracking specific journeys. • Fuel Gauge: Vertical bars indicating the fuel level in the tank. • Clock: Digital time display. 3. Warning & Indicator Lights (Bottom) A row of dedicated tell-tale icons provides quick status updates: • Turn Indicators: Flashing green arrows. • Neutral (N): Green light indicating the bike is out of gear. • High Beam: Blue icon for the headlamp. • Battery Alert: Red icon indicating low voltage or charging issues. • Side Stand Warning: (Often integrated into the LCD or a separate light) to prevent riding with the stand down.
